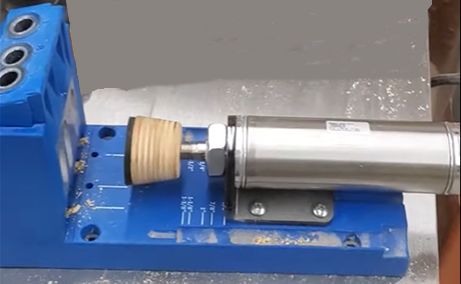

Woodhaven Cylinder Kit — Pneumatic Upgrade for Pocket Hole Jigs

Speed up your pocket hole drilling with the Woodhaven Cylinder Kit. This pneumatic upgrade converts the toggle clamp on your pocket hole jig to a foot-pedal controlled air cylinder — freeing both hands to position your workpiece while your foot controls the clamp. The result is faster, more consistent pocket hole drilling with significantly less fatigue on production runs.

You supply a 1/4" air line from your compressed air source. Everything else is included.

What's Included:

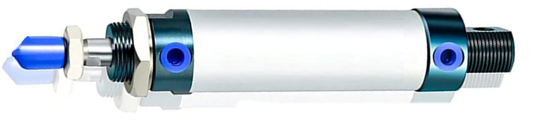

• Air cylinder

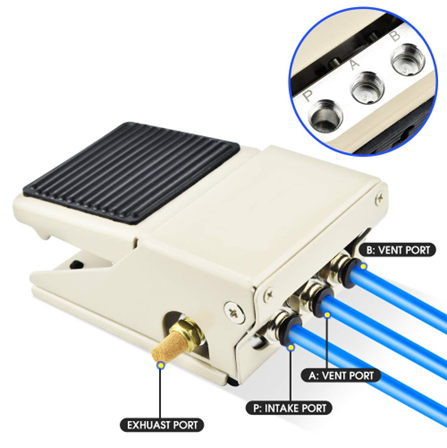

• Foot pedal
• Air line fittings

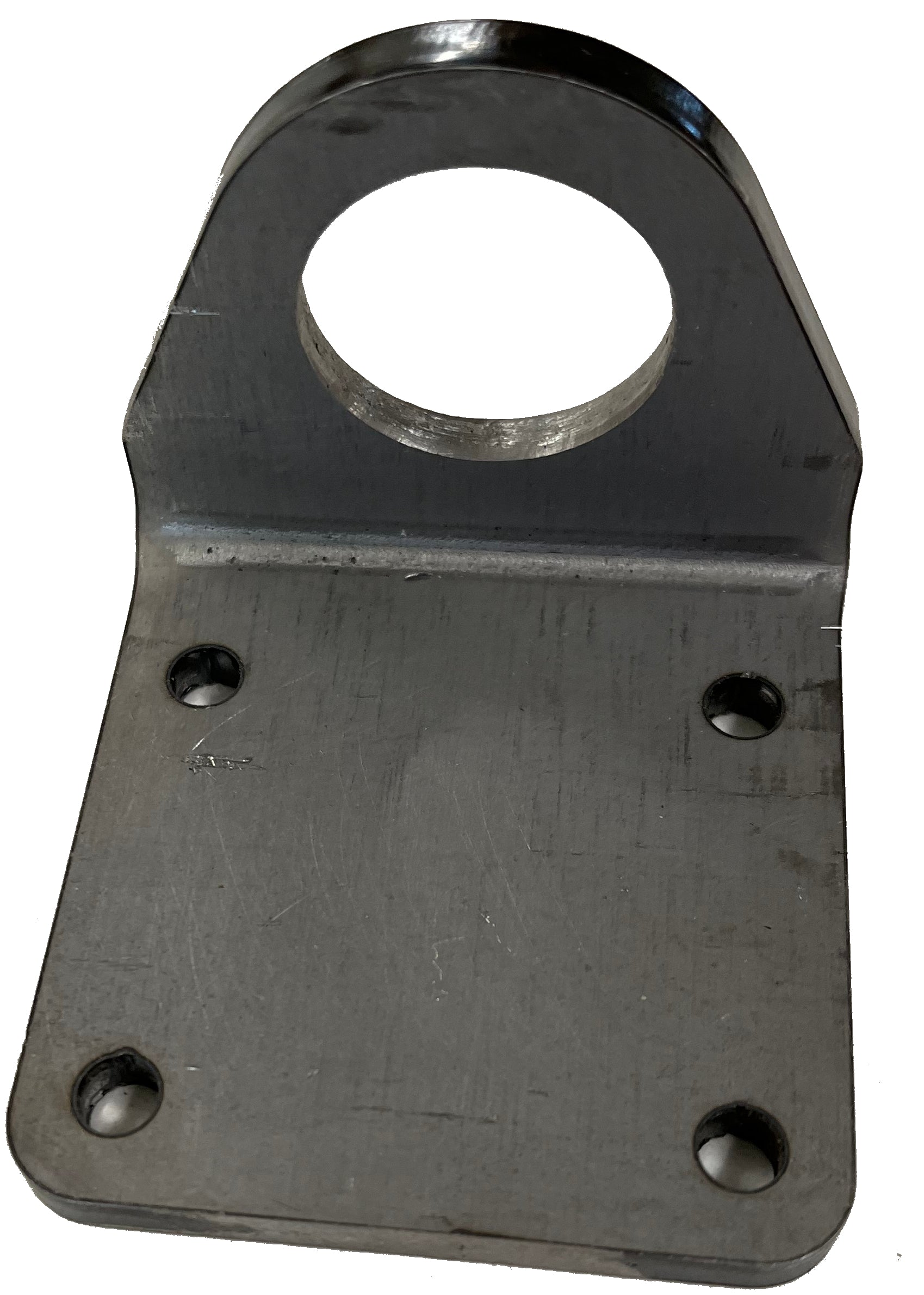

• Cylinder to jig mounting bracket
• Cylinder rod end block with cushioned face
• 15' of 1/4" tubing to connect all components

Pocket hole jig not included. Requires a compressed air source with 1/4" connector.

Key Benefits:

• Both hands free to hold and position workpieces
• Foot pedal operation for rapid, repeatable clamping
• Reduces fatigue on high-volume drilling runs
• Cushioned rod end protects workpiece surface
