Keller 2200 Journeyman Dovetail Jig | Through Dovetails for Furniture & Cabinets

Keller 2200 Journeyman Through Dovetail Jig

The Keller 2200 Journeyman is the go-to through dovetail jig for woodworkers building furniture, cabinets, chests, and drawers. Designed for hobbyists and those new to router dovetails, the 2200 delivers clean, accurate through dovetail joints without the steep learning curve of traditional hand-cut methods.

The 22" precision phenolic template handles unlimited width capacity — run the template across boards of any size by repositioning as needed. The two included carbide-tipped bits are industrial quality and sized for furniture-scale work in stock 5/8" to 1" thick. An economical entry into the Keller Pro Series system, the 2200 is fully compatible with the Model 1500 Journeyman template.

Made in the USA.

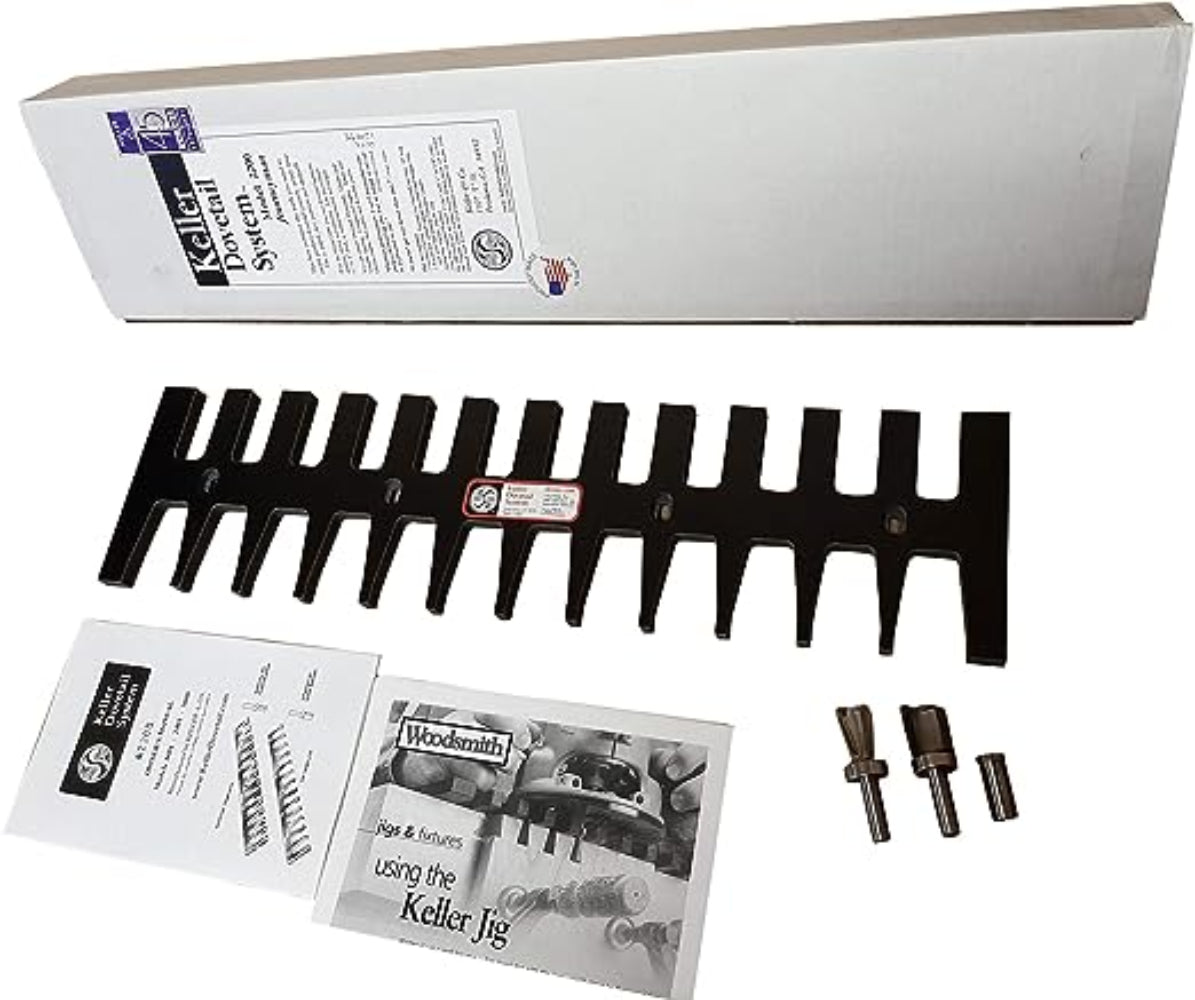

What's Included:

• 22" precision phenolic template — cuts both dovetails and pins, unlimited width capacity
• 7° dovetail bit with guide bearing (carbide-tipped, industrial quality)
• Straight bit with guide bearing — for stock 5/8" to 1" thick
• 3/8"–1/2" collet adaptor
• Full set of mounting screws
• Instruction manual

Specifications:

• Template length: 22"
• Template material: 1/2" phenolic
• Dovetail angle: 7°
• Stock thickness range: 5/8" to 1"
• Joint type: Through dovetail

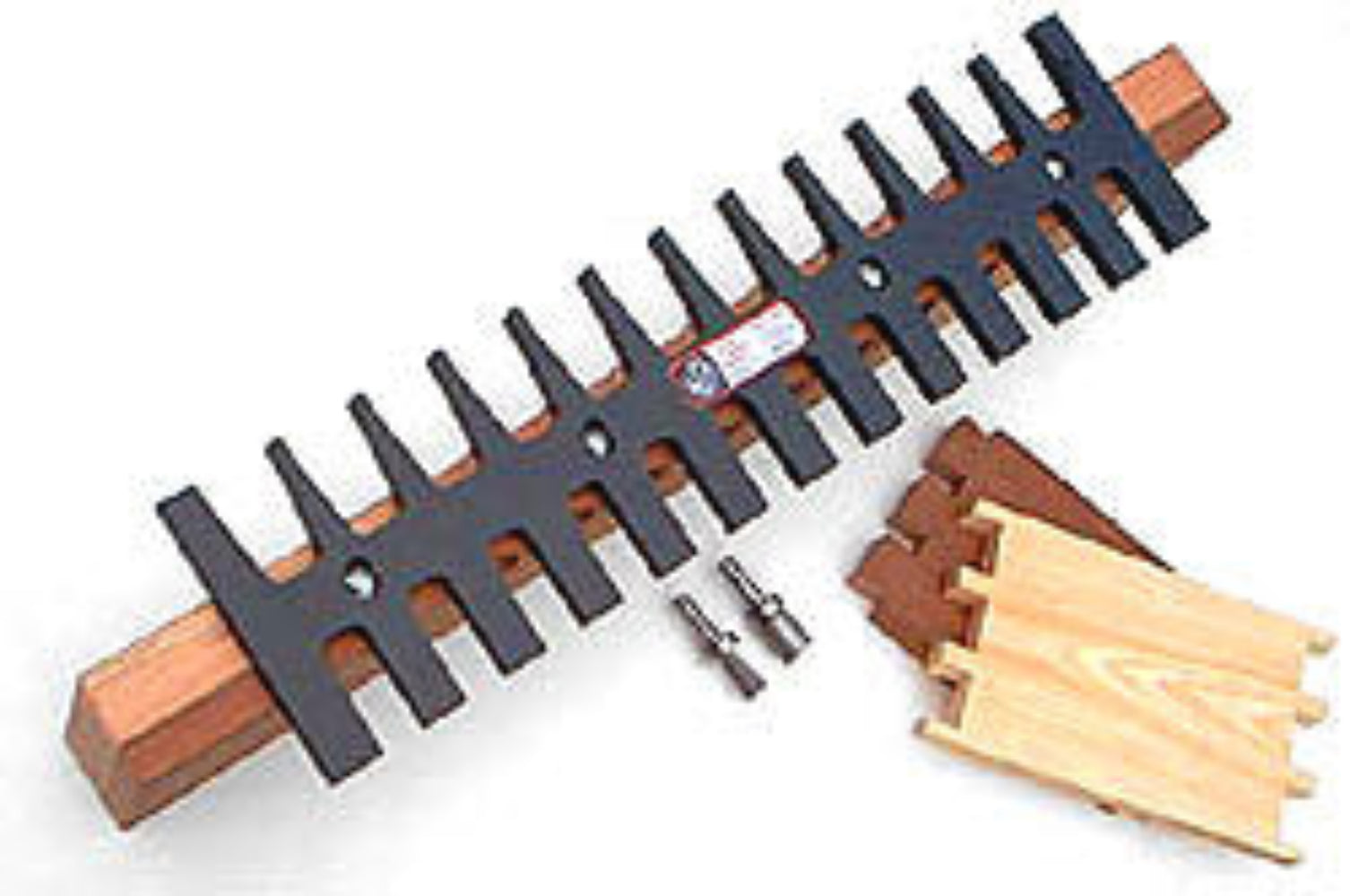

Note: Template requires a simple wooden backing block, not included.
